Access Control System F19

Description

F19 is an innovative biometric reader for access control application, offering unparalleled performance by using an advanced algorithm for reliability,precision and excellent matching speed.The F19 features the fatest commercial-based fingerprint matching algorithm ZK high-performance ,high-image quality infrared detection fingerprint sensor.The device offers flexibility to be installed standalone or with any third party access control panels that support standard wiegand signal.All the operation can be done on the TFT-LCD color screen.The fingerprint image will be displayed on it.That will guide user to put finger on proper position and increase recognition rate.TCP/IP and RS485 are available that the device can be used in different network.

Specifications

Fingerprint Capacity : 3000 Templates

Transaction Capacity : 30,000 Transactions

Sensor : ZK Optical Sensor

Algorithm Version : ZK Finger V9.0&10.0

Communication : RS232/485,TCP/Ip,USB-host

Access Control Interface : 3rd Party Electric Lock,Door Sensor,Exit Button,Alarm,Door Bell

Wiegand Signal : Input & Output

Display : TFT LCD Color Screen

Interface Styles : Common,Matrix and Magic Styles

Standard Function : Webserver,Anti-passback

Optional Function : ID Card,Mifare Card

Power Supply : 12V DC,3A

Operating Temperature : 0°C - 45°C

Operating Humidity : 20% - 80%

Dimension(W*H*D) : 87*195*42.5mm

Features

TFT-LCD color screen

Audio visual indication for acceptance and rejection of valid/invalid fingerprints

More simple and convenient operation

Slim and elegant design

Sreamlined and slim design for narrow spaces

Fast and Accurate Fingerprint Algorithm

Use recognition in 1 second

Store 3,000 fingerprint templates and 30,000 transactions

Easy Installation and Connectivity

Wiegand input & output

Network interface by TCP/IP or RS485

Full Access Control Features

Webserver

Anti-passback

Access control interface for 3rd party electric lock, door sensor, exit button, alarm

Easy operation and management

Work with computer

Buzzer,4x4 keypads and doorbell

Built-in series and Ethernet ports

Built-in USB port allow for manual dat transfer

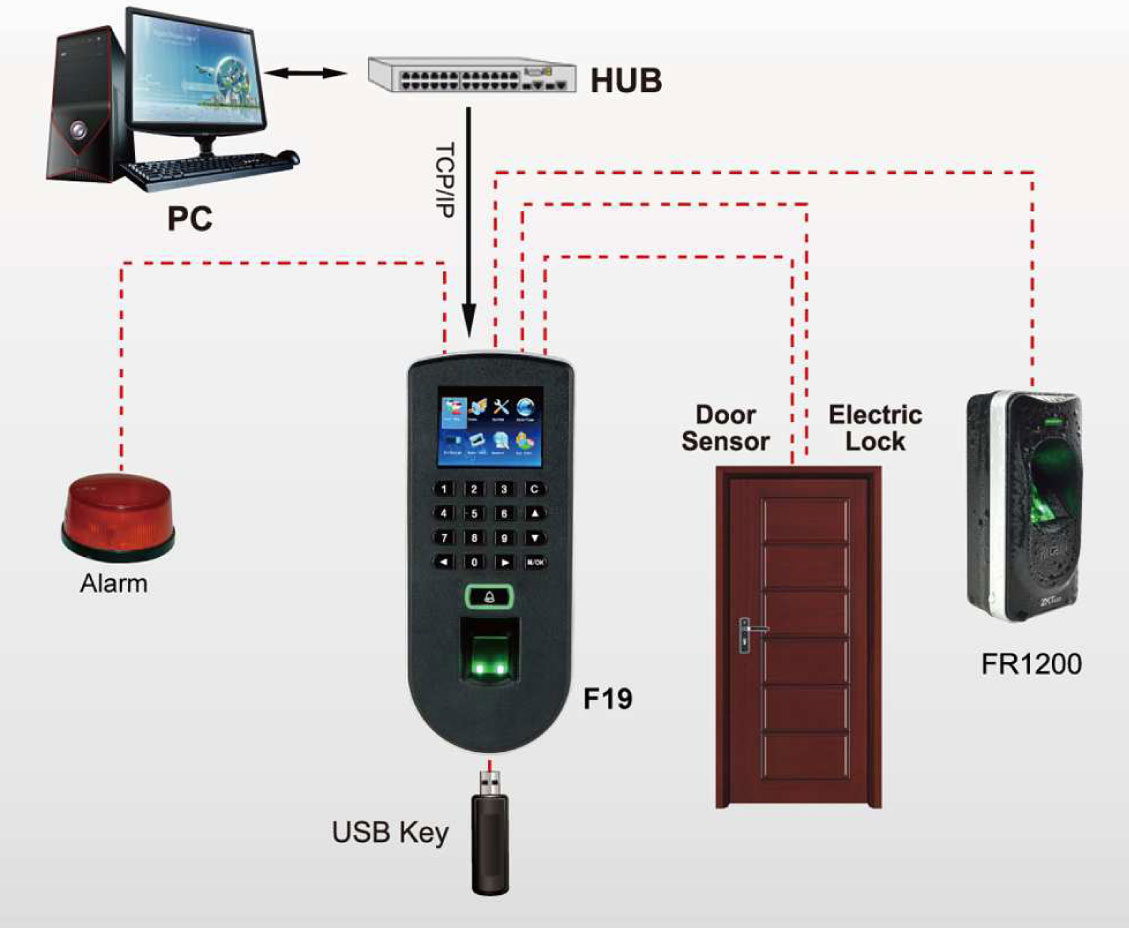

Configuration
