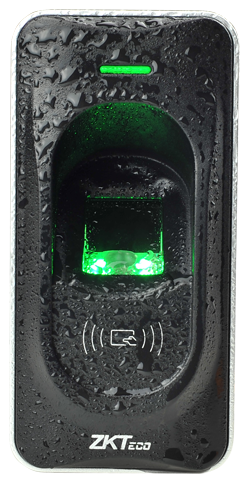

Access Control System FR1200

Description

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

Specifications

CPU : 324MHz

Sensor : ZK small-sized sensor

Communication : RS485

Standard Function : ID Card Module

Optional Function : MF Card Module

Voice Prompt : Buzzer

Working Voltage : 12VDC

Working Temperature : 0°C ~ 45°C

Protection Grade : IP65

Size

Height : 102mm

Width : 50mm

Depth : 37mm

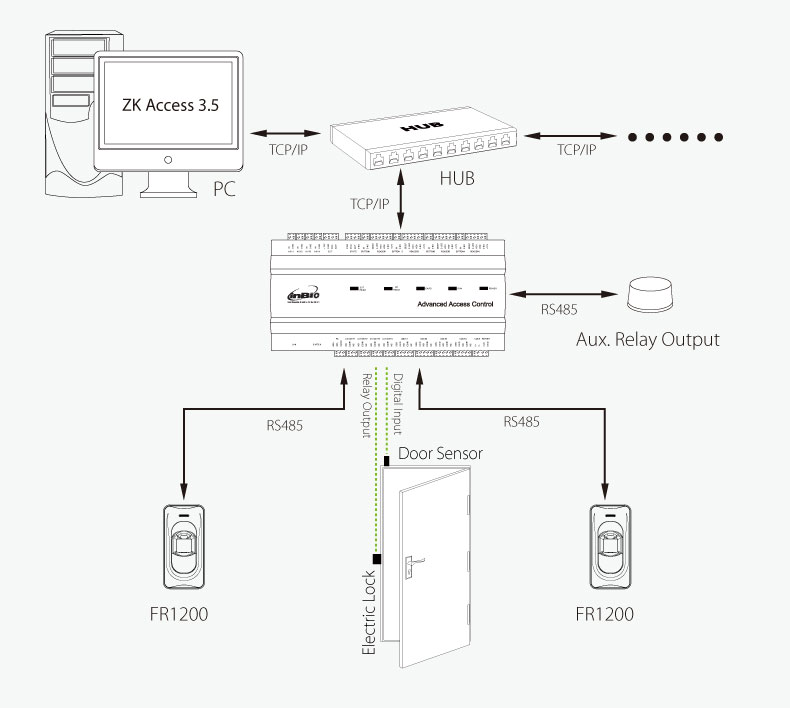

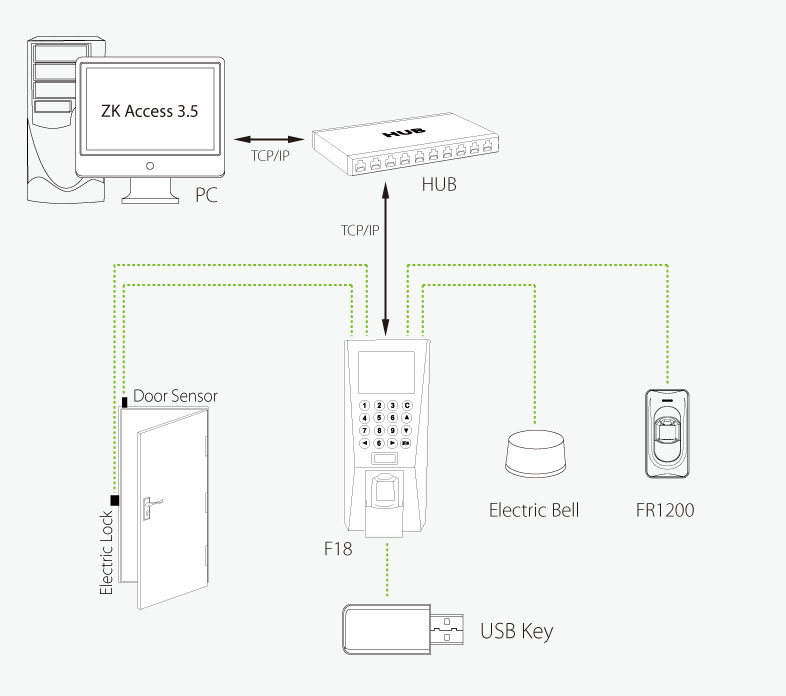

Configuration
