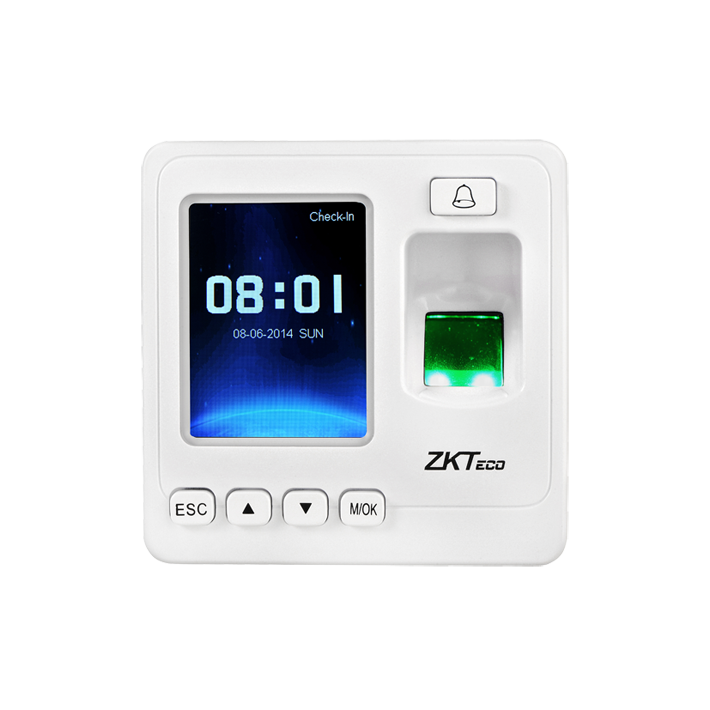

Access Control System SF100

Description

The SF100 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with ZKAccess3.5 software for access control and time attendance management.

Wiegand output makes SF100 flexible to connect with ZK or any 3rd party controllers as a slave reader. Additionally wiegand input allows two units of SF100 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.

Auxiliary input interface allows SF100 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

Specifications

Model : SF100

LCD : 2.4-inch TFT (320 x 240) Color Screen

Fingerprint Sensor : ZK Optical Sensor (500DPI)

Algorithm Version : ZKFinger VX10.0

Communication : TCP/IP, RS485, USB Host

Fingerprint Capacity : 1,500

Card Capacity (Optional) : 5,000 (EM/Mifare)

Records Capacity : 80,000

Access Control Interface : Electric lock, Door sensor, Alarm, Exit button, Doorbell

Wiegand Signal : Wiegand input & output

Aux. Input : 1ea for linkage function

Power Supply : DC 12V/3A

Operating Temperature : 0 ~ 45°C (32°~113°F)

Operating Humidity : 20 ~ 80%

Dimension(W x L x H) : 90 x 90 x 34.5mm

Features

2.4-inch color display with graphical UI for easy operation

Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)

Prompt audio acceptance or rejection signals for valid or invalid fingers

Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation

TCP/IP or RS485 communication for various networking environments

Supports USB flash drive for offline data management

Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

Up to 15 multi-verification methods to enhance security level

Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.

Duress Alarm offers effective protection against duress by threats

Tamper proof switch and multiple alarm outputs

Multi-languages customizable

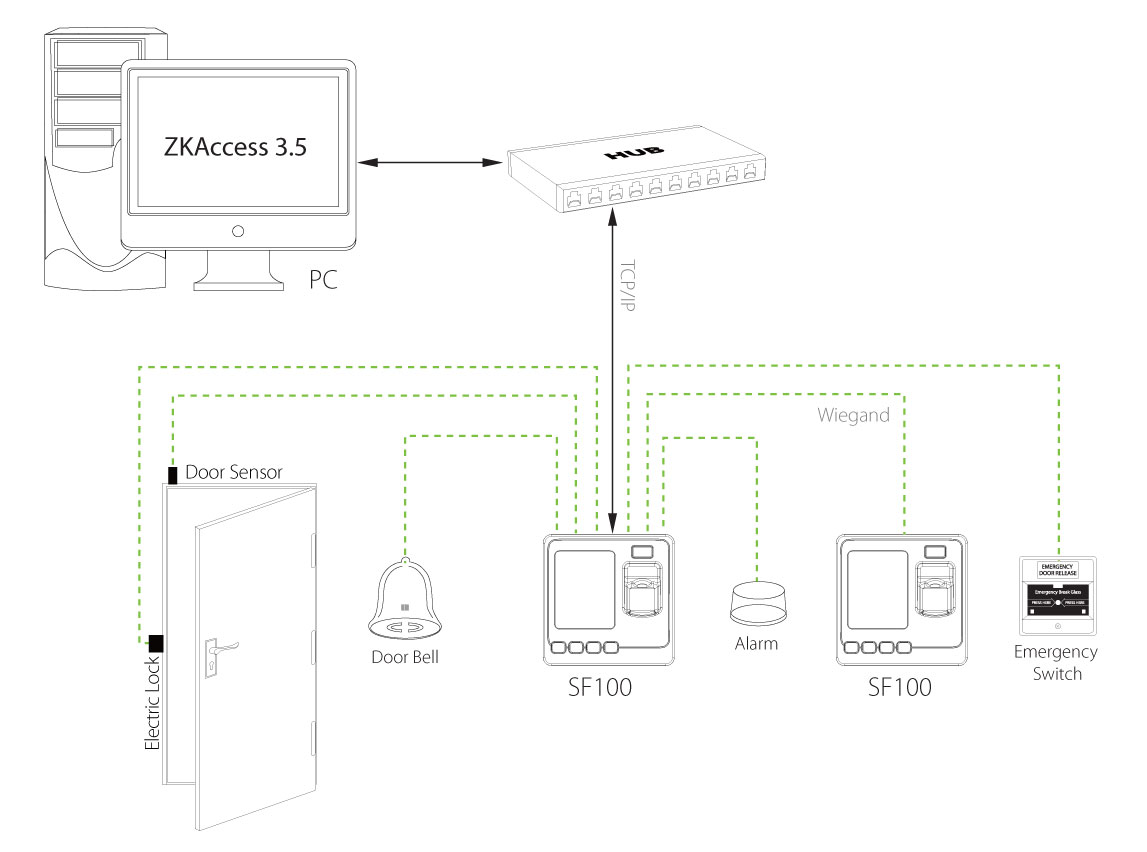

Configuration
