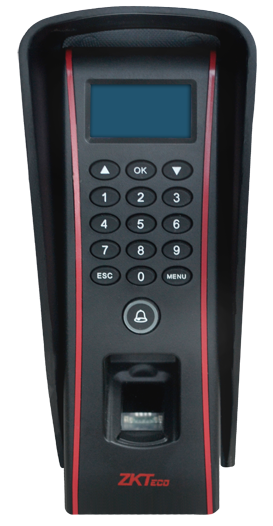

Access Control System TF1700

biometric attendance system in chennai



TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing.

With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others.

The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKAccess3.5 management software which has versatile features and powerful functions.



Fingerprint Sensor : Infrared detection fingerprint sensor

Algorithm Version : ZK Finger 10.0

Communication : TCP/IP, RS485, USB Host

Fingerprint Capacity : 3,000 Fingerprints(8,000 Optional)

Card Capacity : 10,000 Cards

Log Capacity : 50,000 Transactions

RF Card : EM(standard)/Mifare(optional)

Authentication : Finger/PIN/Card

Wiegand Signal : Wiegand input&output

Ingress Protection Rate : IP65

Display : 128 x 64 OLED

Keypad : 3 x 5 keypads & doorbell

Sound and Interface : Buzzer and multi-color LED

Operating Voltage : 12VDC 3A

Operating Temperature : -10 °C~50 °C (14°F ~ 122°F)

Dimension : 62.5mm×185mm×41.5mm (W×H×D)



door access control system chennai

Rugged Structure for Outdoor Installation and Extra Durability

IP65 rated waterproof and dustproof structure

biometric attendance dealers in chennai

Slim and Elegant Design

One of the world’s smallest fingerprint terminals

Sleek and slim design for narrow spaces

biometric system in chennai

Fast and Accurate Fingerprint Algorithm

1 touch a-seond user recognition

Store 3,000 fingerprint templates, 30,000 cards and 100,000 transactions

fingerprint attendance system chennai

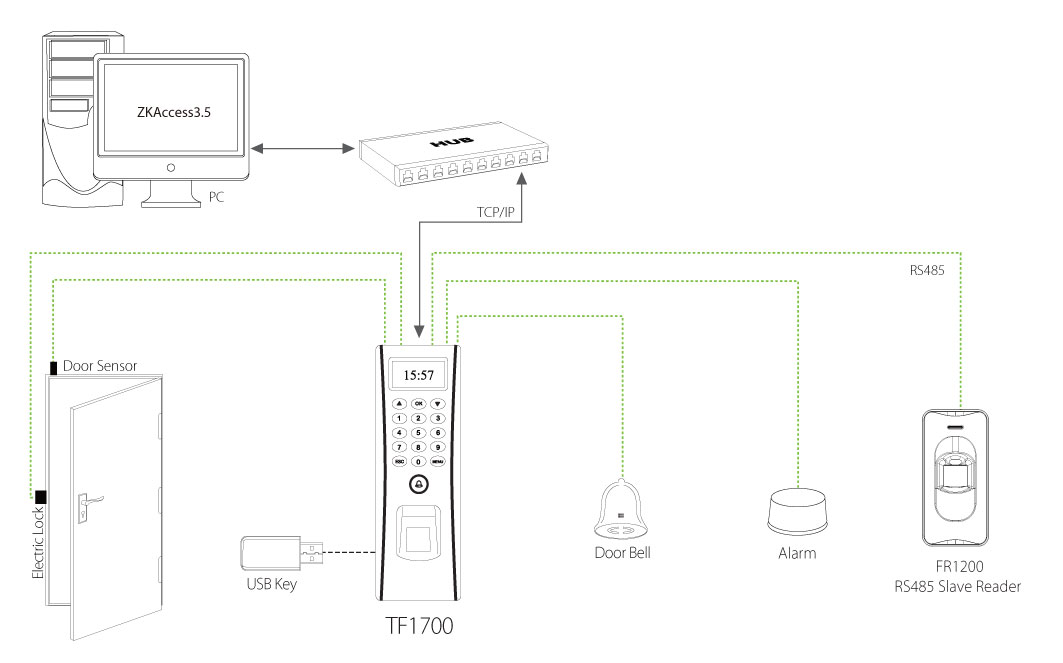

Easy Installation and Connectivity

Wiegand input & output

Network interface by TCP/IP or RS485

biometric attendance chennai

Full Access Control Features


Access control interface for 3rd party electric lock, door sensor, exit button, alarm

biometric attendance system

Easy Operation and Management

Work without computer

OLED, buzzer, 3×5 keypads

Built-in keypad and RF card reader for multi-modal authentication (Fingerprint/PIN/Card)
