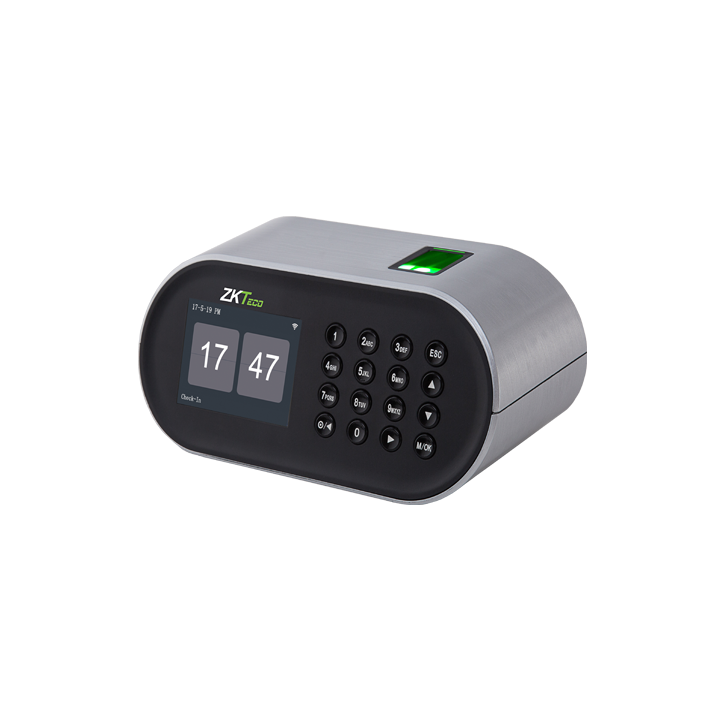

Time Attendance System D1

Description

D1 Tabletop Terminal is specially designed for table or counter use (80-140cm). With fingerprint sensor placed on top of terminal, it enables all-directional fingerprint reading for the convenience of attendance. BioID high sensitivity fingerprint sensor provides faster and more accurate fingerprint verification. With built-in detachable battery lasting for up to 8 hours, and micro-USB power supply for power bank (minimum 2A) connection, there are no more worries for lacking power sockets supply.

Specifications

Capacity

Max User(1:N) : 1,000

Max Fingerprint (1:N) : 1,000

Max Record : 50,000

Interface

Wi-Fi : WLAN / Hot Spot

USB : USB 2.0 (Host)

Hardware

LCD : 2.8” Color LCD

Sound : 24-bit

Operating Temp : 0 °C- 45 °C

Operating Humidity : 20% ~ 80%

Power : DC 5V 2A

Battery : 4,000 mAh

Dimensions(W x H x D mm) : 180.0 x 84.5 x 81

Function

Standard : Automatic Status Switch, Self-Service Query, SSR DST, T9 Input, 9 Digit User ID, Scheduled Bell

Compatibility

ZKTime.net 3.0

ZKTime 5.0

ZKAccess 3.5

TA Assistant (Optional)

Features

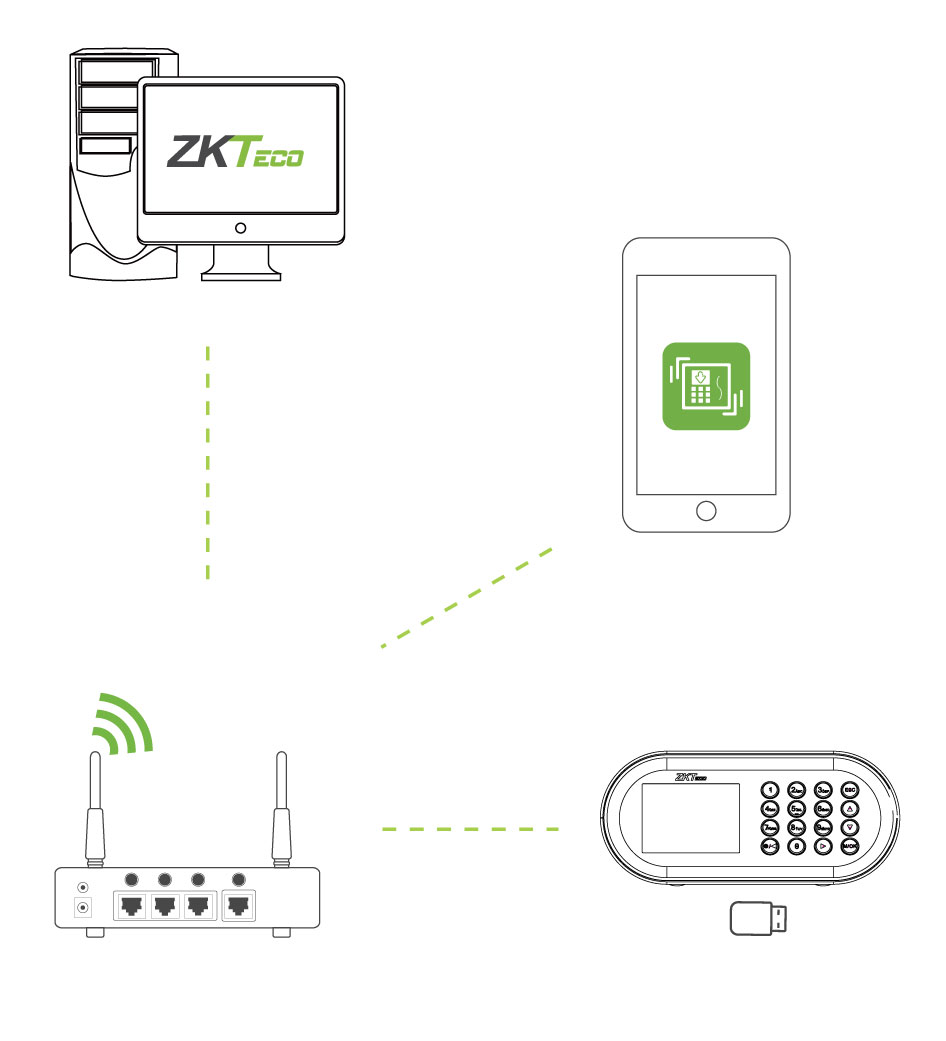

Configuration
