Time Attendance System WL10

Description

WL10 is Fingerprint Time & Attendance Terminal with Wi-Fi Module.With Wi-Fi function,User needn't wire Ethernet cable,it Supports hotspot mode directly.It's associated with ZK new fingerprint reader,the operation remains stable under strong light source and high preciseness of verification of wet and rough fingers.It also has elegant design and slim sharp,it will start new stage of time attendance.

Specifications

Fingerprint Capacity : 1000/1500(without SSR)

Finger Algorithm : ZKFingerVX10.0

Record Capacity : 50,000

Display : 2.8-inch TFT Screen

Communication : Wi-Fi(802.11b/g/n),USB-Host,USB-Client

Standard Functions : SSR,DST,scheduled-bell,Self-Service Query,Automatic Status Switch,T9 Input,9 Digit User ID

Optional Functions : WL10

Power Supply : DC 5V 0.8A

Operating Temp : 0°C - 45°C

Operating Humidity : 20% - 80%

Dimension : 168*125*22.5mm

Features

Wi-Fi , USB client and host

Ultra-thin design

Stable operation under strong light source

Infrared auto-turning on function to save power

Quick recognition of dry , wet and rough fingers

Built-in SSR software , Shift and Report management

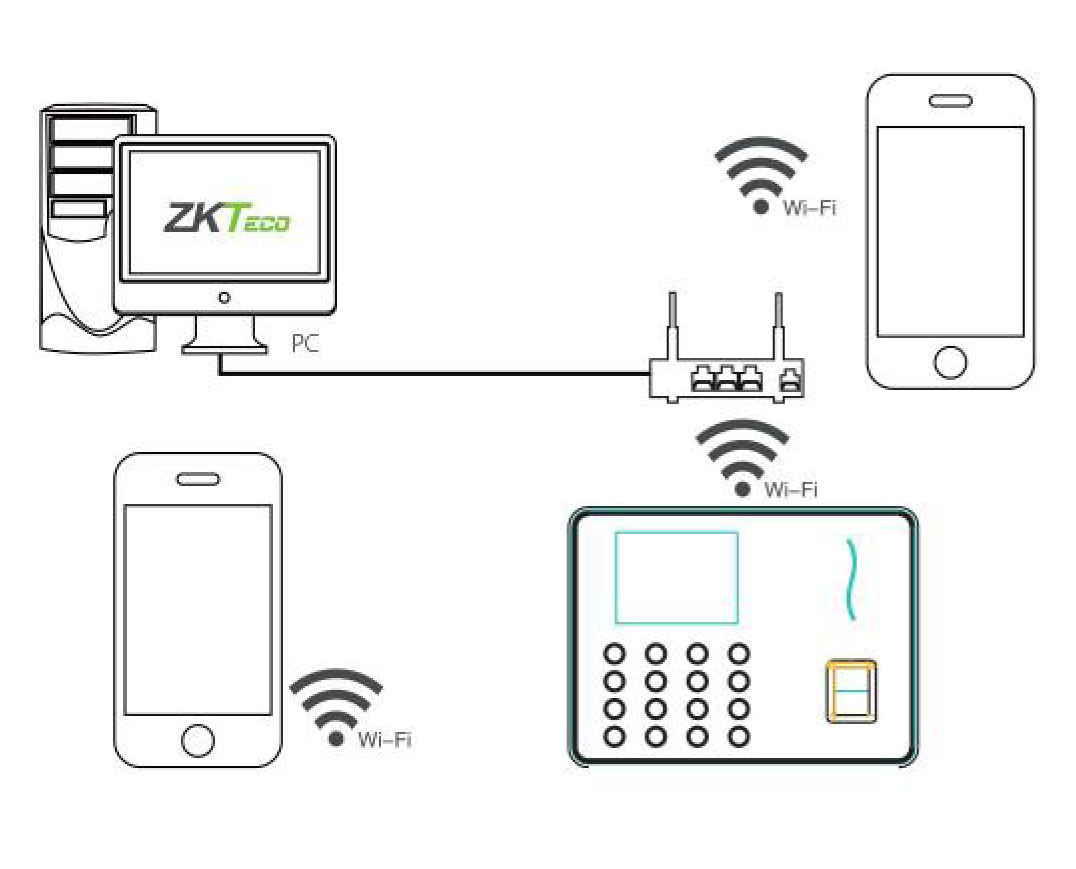

Configuration
