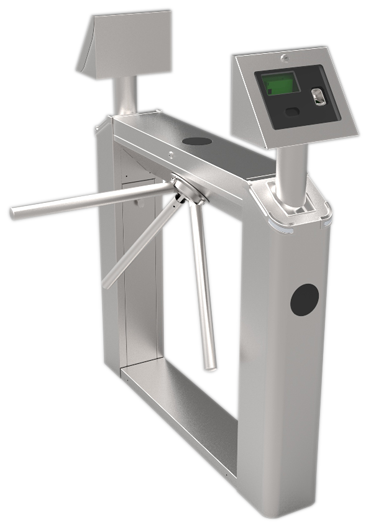

Turnstile TS2133

Description

Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people.

The TS2133 offers a slim, two-legged casework made of stainless steel, ideal for sites where large flows of people and space are issues.

On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top.Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism.In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.

Specifications

Power Supply : AC 220V/110V, 50/60Hz

Operating Temperature : -28 °C- 60 °C

Operating Humidity : 5%-85%

Working Environment : Indoor/Outdoor(shelter)

Rated Power : 60W

Flow Rate : 25- 48 passage/minute

Ingress Protection : IP54

Casework Material : SUS304

Pictogram Indication : Yes

Control System : Input controlled by dry contact

Emergency Button Input : Yes

Dimension : 111×133×18(CM) + arm length 50CM

Package Dimension : 120×108×28(CM)

Net Weight : 51KG

Gross Weight with Package : 59KG

Optional Function : Alternative Material or shape, third-party access control integration, ticket system integration, passage counter

Features

Reliability

Alloy steel tripod hub prevents mechanical wear

Casework and tripod arms manufactured in SUS304 stainless steel

Electromagnets for lock are used only when activated. They are in standby mode when the device is idle.

ZK patented compact mechanism ensue the long life of the lubricating oil inside.

High quality electrical components

Safety and User-Orientated Design

Drop arm design for emergency purpose

There are no exposed screws, it is safer for the user.

Smooth operation designed for mas transit application

The pictogram on the device indicating access permission and direction of movement

Special designed case shape, it is user-friendly for passenger to punch card or finger.

Anti-tailgate
