Turnstile TS2200

Description

Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.

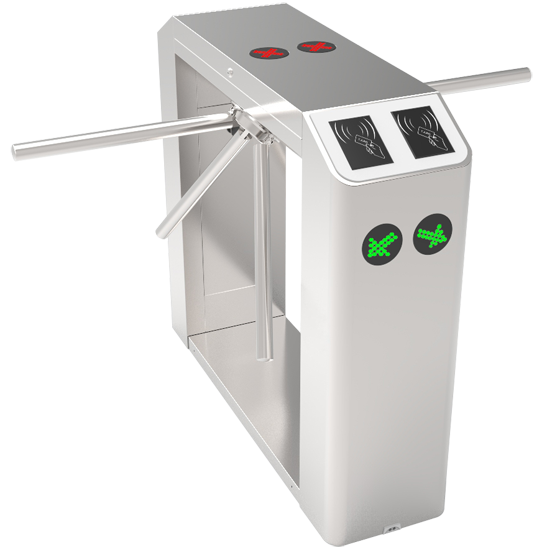

The TS2200 series offer a well-designed, two-legged casework made of stainless steel, ideal for sites where a high traffic and robustness are issued. The TS2200 series have two passage channels in one casework, it is cost-effective for the application.

By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. The status is shown on the led-way mode indicators on the top. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators are included as standard.

Specifications

Power Supply : AC 220V/110V, 50/60Hz

Operating Temperature : -28 °C- 60 °C

Operating Humidity : 5%-85%

Working Environment : Indoor/Outdoor(shelter)

Rated Power : 60W

Flow Rate : 25- 48 passage/minute

Casework Material : SUS304

Pictogram Indication : Yes

Control System : Input controlled by dry contact

Emergency Button Input : Yes

Dimension : 111×98×32(CM) + arm length 50CM

Package Dimension : 120×108×44(CM)

Net Weight : 65KG

Gross Weight with Package : 75KG

Optional Function : Alternative material or shape, third-party access control integration, ticket system integration, passage counter

Features

Reliability

Alloy steel tripod hub prevents mechanical wear

Casework and tripod arms manufactured in SUS304 stainless steel

Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle.

ZK patented compact mechanism ensures

High quality electrical components

Safety and humanization design

Drop arm designed for emergency purpose

No exposed screws, safer for the user.

Smooth operation designed for mas transit application

The pictogram on the device indicating access permission and direction of movement

Special designed case shape, user-friendly for passenger to punch card or finger.

Anti-tailgate

Well-designed electronic protection cover. Neat wiring inside.
