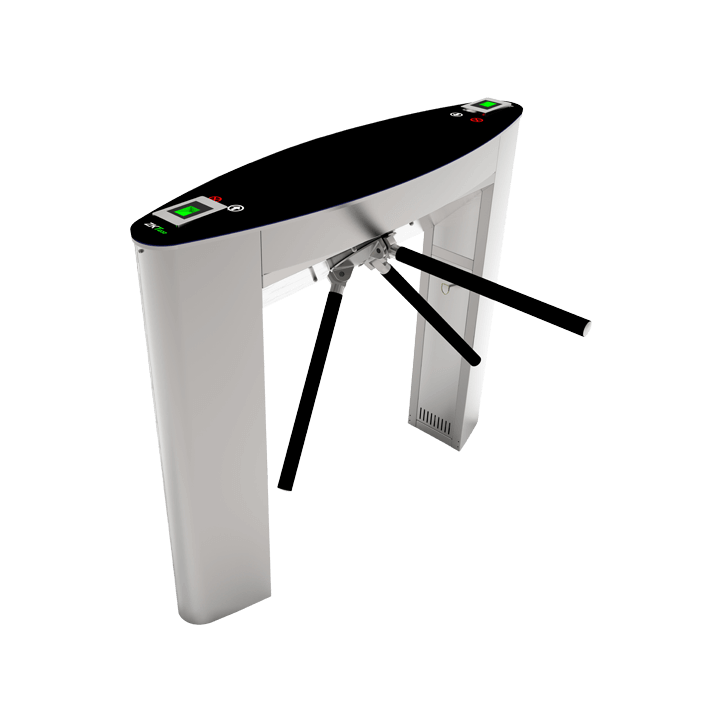

Turnstile TS5000A

Description

TS5000A is an automatic tripod turnstile series designed for smooth and silent operation and consumes very little power. It is made of stainless steel that offers high durability. TS5000A is also surprisingly compact and designed to operate in small workspace.

TS5000A tripod arms are normally held in a locked position, thus denying access to the secured side. Upon the reader (RFID and/or fingerprint) inTS5000A positively recognizing a user’s valid access card or fingerprint, arms unlock and automatically rotate at a slight push.

During emergencies and power outages the tripod arms completely collapse, thereby ensuring users FAST unencumbered exit to safety. When the power is on, the arm will automatically lift up to form a secure lane.

TS5000A provides both security and convenient space, all in a very durable compact design.

Specifications

Power requirements : AC 100 ~ 120V/200 ~ 240V, 50/60Hz

Power consumption

Starting : 73W

Standby : 20W

Unlock : 63W

Working temperature : -28 °C - 60 °C

Working humidity : 5%-80%

Working environment : Indoor/Outdoor(if sheltered)

Speed of throughput

RFID : Maximum 32/minute

Fingerprint : Maximum 28/minute

Face : Maximum 13/minute

Vein : Maximum 19/minute

Lane width(mm) : 500

Footprint(mm*mm) : 1200*750

Dimension(mm) : L=1200, W=300, H=1010

Dimension with packing(mm) : L=1310, W=420, H=1100

Net weight(kg) : 60

Weight with packing(kg) : 90

Cabinet material : SUS304 Stainless Steel

Lid material : Tempered Glass

Barrier material : SUS304 Stainless Steel

Barrier movement : Rotating

Emergency mode : Y

Security level : Medium

MCBF : 2 million

Options/Accessories : Counter, Card Receiver Box, SUS316 Cabinet and Lid, Remote Control

Features

Reliability

SUS304 stainless steel casework & tripod arms ensure long- lasting.

Safety Features

Tripod-arms unlock & drop during emergencies / power loss.

All smooth finishing.

Visual indicator for granted access (or denied).

Ergonomic design makes card and fingerprint authentication fast & simple for users.

Secure. Supports Anti-tailgating.

Built-in Reader Integration

TS5000A series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.

TS5000A series and associated access control readers are all factory-tested prior to shipping.

ZKTeco provides true plug’n play turnstiles with the lowest possible total cost of ownership in the industry.

Easy Operation

LCD on the tripod turnstile control board, easy to make setting.
