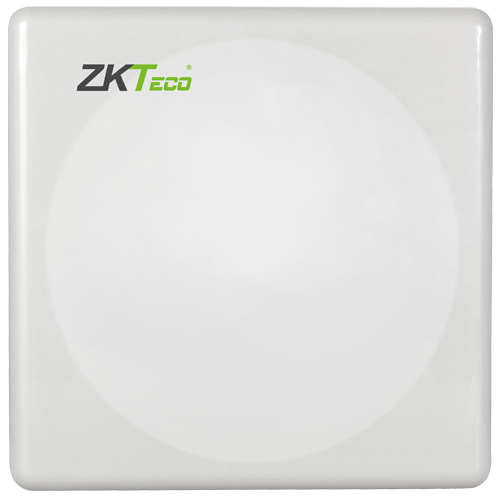

UHF-Reader Long Distance Wiegand Reader

Description

The UHF RFID reader is an RFID long-range proximity card reader which can simultaneously read multiple passive UHF tags at ranges up to 12m.

The reader is waterproof and is suitable for use in a wide range of RFID applications, such as transport management, vehicle management, car parking, production process control, and access control.

Specifications

Model : UHF1-6 , UHF1-12

Dimension : 306*306*75(mm) , 450*450*83.5(mm)

Reading distance : Up to 6 meters (adjustable) , Up to 12 meters (adjustable)

communication interface : Serial:RS-232Console, Wiegand 26(Default) /Wiegand 34

Frequency : 902Mhz – 928Mhz, 865MHz – 868MHz

Shell Material : Die-casting aluminum shell, Antenna panel with engineering plastics

Working Voltage : 9~16V DC

Working Temperature : -20 °C - 55 °C

Interface Protocol : EPC global UHF Class 1Gen 2/ISO 18000-6c

Multiple tags identification : >50

Multiple tags identification speed : >50 Per second

Working mode : Always read/Trigger read

I/O Interface : Supports external trigger

Maximum power consumption : 3W (RF output 26dBm,multiple tags), 2W (RF output 26dBm,Sigle tags)

Features

Read range up to 12 meters (adjustable)

Read Sensitivity: Dual polarization read mode

Wiegand 26-Bit (Can change to 34-Bit via software)

Two working mode: Trigger read & Always read

Comes with the mounting plate and RS-232 cable

Weatherproof (IP68)

Maximum Cable Distance: 100m
