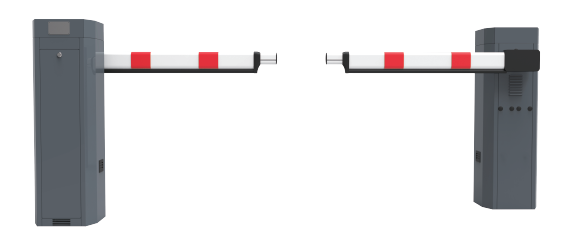

Vehicle Barrier PB3000

Description

ZK Parking Barrier is a product which ZKTeco owns the independent intellectual property rights. Its boom prevents unauthorized vehicles entering restricted area, and can be raised by the remote control, access control system, and long-distance reader. If a loop detector is installed, impact can be avoided. The boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.

The parking barrier can be equipped with photo cell. When people / vehicle obscure the infrared launched from photo cell, boom will be stopped and then raised during lowering. After people / vehicle leave, the boom will be automatically lowered. With the Boom illuminator system, light turns green when boom is raised and turns red when boom is lowered. It help driver to determine the position of boom and avoid hitting the boom.

Specifications

PB3010L/R

Lane Width : 3M

Opening / Closing Time : 1.8S

Supply Voltage : 110V AC or 220V AC

Power Consumption Max : 200W

Frequency : 50-60Hz

Cabinet Material : Powder Coated Steel

Boom Material : Aluminum Alloy

Base Frame : Cast Iron

Temperature Range : -20°C~+60°C

Humidity Range : 90%

Ingress Protection : IP54

Housing Dimensions (W x D x H) : 300 * 280 * 980􀄍mm􀄎

Packing Dimensions (W x D x H) : 460 * 420 * 1150􀄍mm 􀄎

Net Weight (Without Boom) : 56KG

GrossWeight (Without Boom) : 72KG

Specifications

PB3030L/R

Lane Width : 4M, up to 4.8M with telescopic boom

Opening / Closing Time : 3S

Supply Voltage : 110V AC or 220V AC

Power Consumption Max : 200W

Frequency : 50-60Hz

Cabinet Material : Powder Coated Steel

Boom Material : Aluminum Alloy

Base Frame : Cast Iron

Temperature Range : -20°C~+60°C

Humidity Range : 90%

Ingress Protection : IP54

Housing Dimensions (W x D x H) : 300 * 280 * 980􀄍mm􀄎

Packing Dimensions (W x D x H) : 460 * 420 * 1150􀄍mm 􀄎

Net Weight (Without Boom) : 56KG

GrossWeight (Without Boom) : 72KG

Specifications

PB3060L/R

Lane Width : 5M, up to 5.8M with telescopic boom

Opening / Closing Time : 6S

Supply Voltage : 110V AC or 220V AC

Power Consumption Max : 200W

Frequency : 50-60Hz

Cabinet Material : Powder Coated Steel

Boom Material : Aluminum Alloy

Base Frame : Cast Iron

Temperature Range : -20°C~+60°C

Humidity Range : 90%

Ingress Protection : IP54

Housing Dimensions (W x D x H) : 300 * 280 * 980􀄍mm􀄎

Packing Dimensions (W x D x H) : 460 * 420 * 1150􀄍mm 􀄎

Net Weight (Without Boom) : 56KG

GrossWeight (Without Boom) : 72KG

Features

Compact design, convenient for packing and lowering delivery cost

ZK designed rolling pressure spring technology, extending product life

Boom can be raised and lowered smoothly and steadily

Convenient for maintenance and customization

Simple installation - just fix the barrier on the floor and connect it to electricity

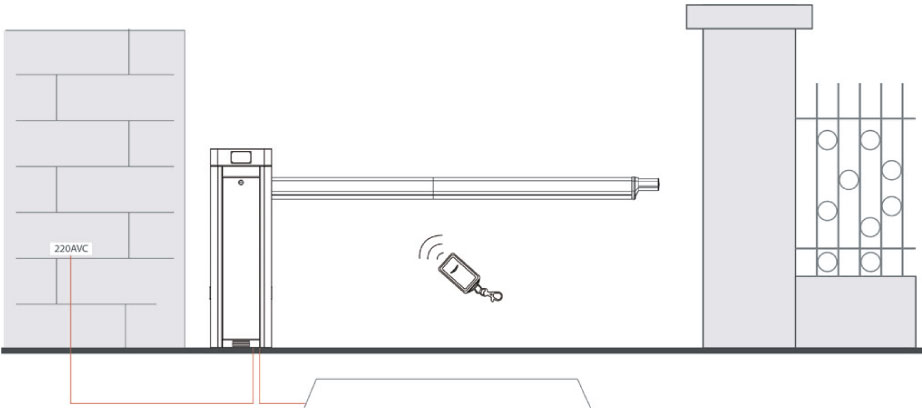

Installation
