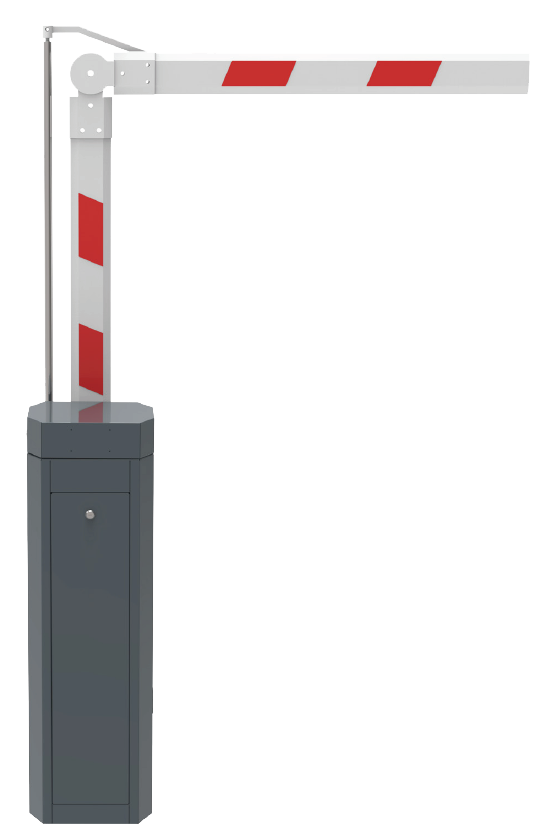

Vehicle Barrier PB3130

Description

ZK Parking Barrier is a product which ZKTeco owns the independent intellectual property rights. The folding arm parking barrier be used to the underground parking area. The parking barrier support various ways to control. Such as by the remote control, access control system or UHF reader. Loop detector and infrared photocell as an optional function can promote the level of safety. If a loop detector is installed, impact can be avoided. The boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.

The parking barrier can be equipped with infrared photocell. When people / vehicle obscure the infrared launched from photo cell, boom will be stopped and then raised during lowering. After people / vehicle leave, the boom will be automatically lowered.

Specifications

Lane Width : 4M

Opening / Closing Time : 3S

Supply Voltage : 110V AC or 220V AC

Power Consumption Max : 200W

Frequency : 50-60Hz

Cabinet Material : Powder Coated Steel

Boom Material : Aluminum Alloy

Base Frame : Cast Iron

Temperature Range : -20°C~+60°C

Humidity Range : ≤90%

Ingress Protection : IP54

Packing Dimensions (Wx Dx H) : 460 x 420 x 1150mm

Net Weight (Without Boom) : 56KG

Gross Weight (Without Boom) : 72KG

Features

Folding arm is suitable for underground parking area

Compact design, convenient for packing and lowering delivery cost

ZK designed rolling pressure spring technology, extending product life

Boom can be raised and lowered smoothly and steadily

Convenient for maintenance and customization

Simple installation – just fix the barrier on floor and connect it to electricity

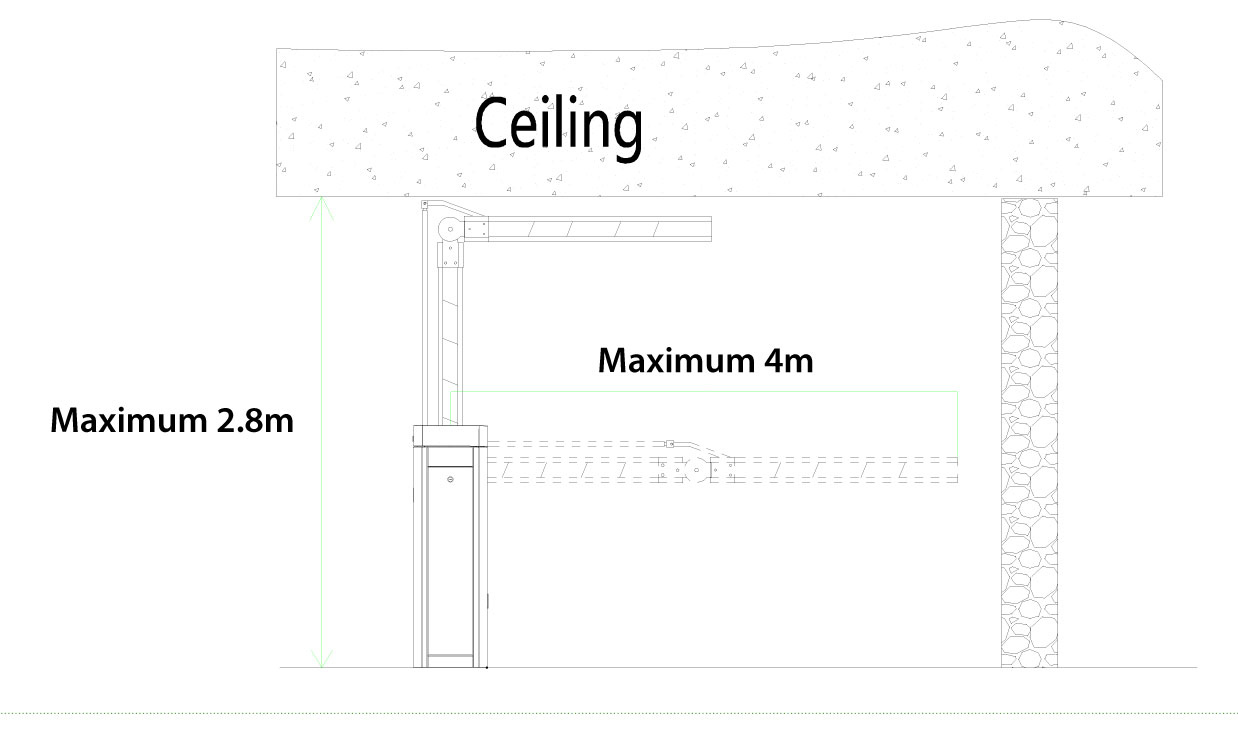

Installation
